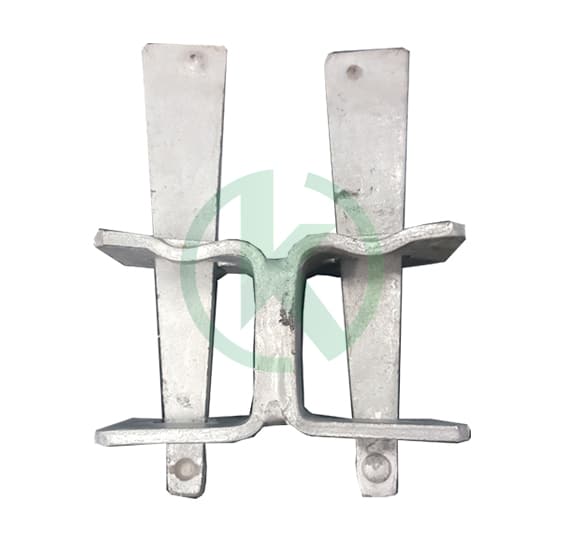

Double C Clips

The bridging ledger is provided to achieve a clear span of 4.8m by eliminating the centre set of standards, whilst maintaining the continuity of the scaffold deck.

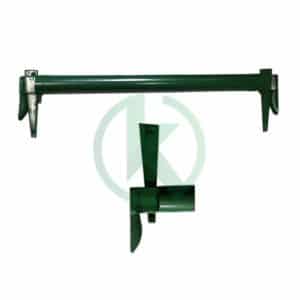

Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.

Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.

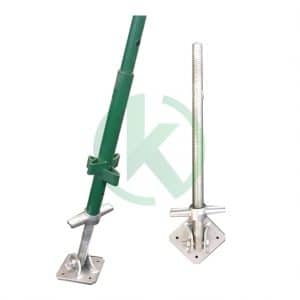

U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD

Toe baord brackets also known as toe board clips are Clamped to the standard with a captive wedge to hold the batten toe board vertically in place.
