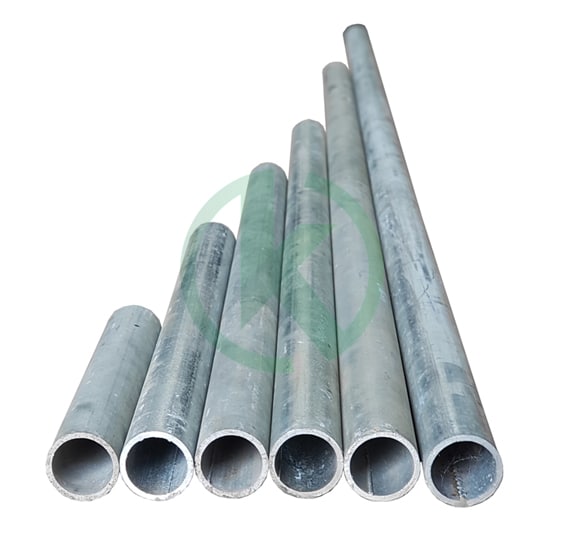

Galvanized Scaffold Tubes 4mm
KwikUP Scaffoling supplies Scaffold Tubes which comly with Australian standards AS1576.3 & AS1576.1 App A clause A5 – steel tubes Tubes come in sizes from 0.3 m to 6.3 m and in packs / bundles of 61 pcs KwikUP supplies various types of forged fittings along with scaffolding tubes Scaffold tubes end can be painted in any colour of your choice
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|
| 0.3 | 1.27 | 48.30 OD X 4 mm Thick | |||
| 0.6 | 2.54 | 48.30 OD X 4 mm Thick | |||
| 0.9 | 3.81 | 48.30 OD X 4 mm Thick | |||
| 1.2 | 5.08 | 48.30 OD X 4 mm Thick | |||
| 1.5 | 6.36 | 48.30 OD X 4 mm Thick | |||
| 1.8 | 7.63 | 48.30 OD X 4 mm Thick | |||
| 2.1 | 8.9 | 48.30 OD X 4 mm Thick | |||
| 2.4 | 10.17 | 48.30 OD X 4 mm Thick | |||
| 2.7 | 11.22 | 48.30 OD X 4 mm Thick | |||
| 3 | 12.71 | 48.30 OD X 4 mm Thick | |||
| 3.3 | 13.98 | 48.30 OD X 4 mm Thick | |||
| 3.6 | 15.25 | 48.30 OD X 4 mm Thick | |||
| 3.9 | 16.52 | 48.30 OD X 4 mm Thick | |||
| 4.2 | 17.8 | 48.30 OD X 4 mm Thick | |||
| 4.5 | 19.07 | 48.30 OD X 4 mm Thick | |||
| 4.8 | 20.34 | 48.30 OD X 4 mm Thick | |||
| 5.1 | 21.61 | 48.30 OD X 4 mm Thick | |||
| 5.4 | 22.88 | 48.30 OD X 4 mm Thick | |||
| 5.7 | 24.15 | 48.30 OD X 4 mm Thick | |||
| 6 | 25.42 | 48.30 OD X 4 mm Thick | |||
| 6.3 | 26.69 | 48.30 OD X 4 mm Thick | |||
| 6.5 | 27.54 | 48.30 OD X 4 mm Thick |
Related Products
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 |  | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | | 2.4 m galvanized steel Plank |
Kwikstage Hopup bracket – Straight arm
Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 6.25 | | | 2 board hopup straight arm | |||
| 3 BOARD WIDE | 11.25 | | | 3 board hopup straight arm |
Double C Clips
Used to Join Kwikstage scaffolding Standards Back to Back for more stability and steenght to the scaffold structure
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1.5 | | | Double C Coupler | |||
| default variation | 1.5 | | | Double C Coupler |
Kwikstage Galvanized Steel Infills
The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 4.05 | | 1.2 m galvanized steel infill | ||||
| 1.8 M | 6 | | 1.8 m galvanized steel infill | ||||
| 2.4 M | 7.5 | | 2.4 m galvanized steel infill |
Swivel base jack
Swivel Jack provides stability for uneven surfaces. The jacks has 180 degree rotation for extra flexibility. Made from heavy duty steel and galvanized to last longer.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 7 | | swivel solid base jack | ||||
| default variation | 7 | | swivel solid base jack |
