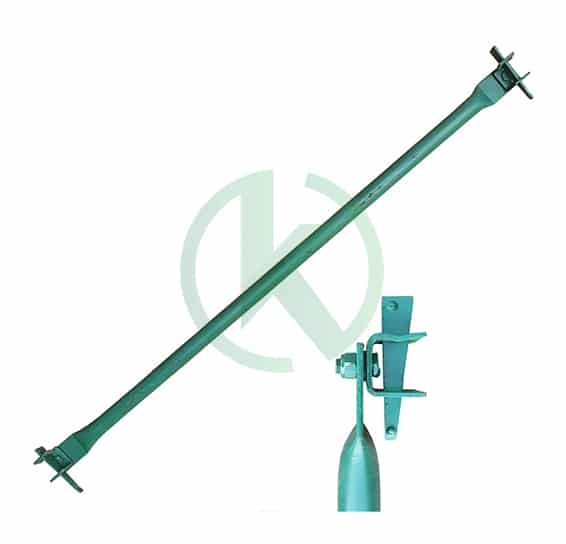

Kwikstage Diagonal Braces
Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.7 M | 8.4 | ![]() | ![]() | 1.7 m brace | |||
| 2.1 M | 8.6 | ![]() | ![]() | 2.1 m brace | |||
| 2.7 M | 11.5 | ![]() | ![]() | 2.7 m brace | |||
| 3.2 M | 13.4 | ![]() | ![]() | 3.2 m brace | |||
| 3.6 M | 14.7 | ![]() | ![]() | 3.6 m brace |
Related Products
Kwikstage Galvanized Steel Infills
The steel in-fill spans between the transoms giving a non slip surface with a is hot dip galvanized finish.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 4.05 | ![]() | 1.2 m galvanized steel infill | ||||
| 1.8 M | 6 | ![]() | 1.8 m galvanized steel infill | ||||
| 2.4 M | 7.5 | ![]() | 2.4 m galvanized steel infill |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 | ![]() | ![]() | Standard Topper | |||
| 0.5 M | 3.6 | ![]() | ![]() | 0.5 m standard | |||
| 1.0 M | 6.5 | ![]() | ![]() | 1.0 m standard | |||
| 1.5 M | 9.15 | ![]() | ![]() | 1.5 m standard | |||
| 2.0 M | 12.15 | ![]() | ![]() | 2.0 m standard | |||
| 2.5 M | 14.7 | ![]() | ![]() | 2.5 m standard | |||
| 3.0 M | 17.5 | ![]() | ![]() | 3.0 m standard |
Kwikstage Hopup bracket – Couplers
custom made with couplers for more flexibility
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 8.1 | ![]() | ![]() | 2 Board Hopup with Couplers | |||
| 3 BOARD WIDE | 12 | ![]() | ![]() | 3 Board Hopup with Couplers |
Plain Base Plate
Provides stability to the scaffold structure when place at the base and stops the tubes from slipping across the floor
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 150 mm X 150 mm | 1.8 | ![]() | ![]() | Plain base plate | |||
| default variation | 1.8 | ![]() | ![]() | Plain base plate |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 | ![]() | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | ![]() | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | ![]() | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | ![]() | 2.4 m galvanized steel Plank |
