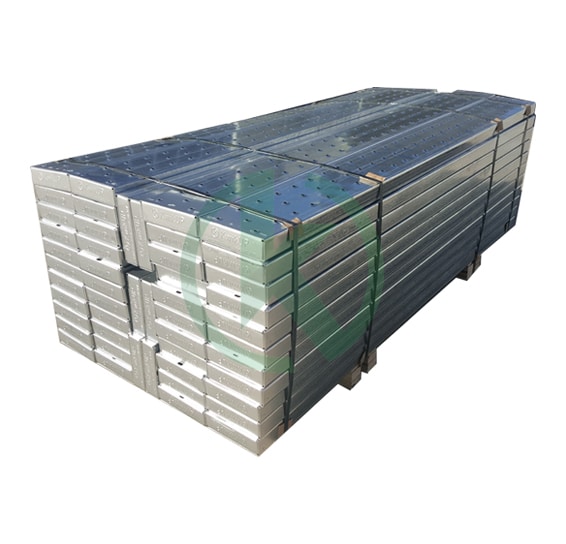

Kwikstage Galvanised Steel Plank
Our Kwikstage scaffold galvanised steel plank are tested and approved as per Australian standards AS 1577-2013. The steel plank spans between the transoms giving a non slip surface. Used to make pathway in the scaffold structure and provides a safe walking platform.
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|
| 2.4m | 15.0kg | No Description | |||
| 1.8m | 10.5kg | No Description | |||
| 1.2m | 6.5kg | No Description | |||
| 0.7m | 4.0kg | No Description |
Related Products
Plain Base Plate
Provides stability to the scaffold structure when place at the base and stops the tubes from slipping across the floor
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 150 mm X 150 mm | 1.8 |  | | Plain base plate | |||
| default variation | 1.8 | | | Plain base plate |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 | | | Standard Topper | |||
| 0.5 M | 3.6 | | | 0.5 m standard | |||
| 1.0 M | 6.5 | | | 1.0 m standard | |||
| 1.5 M | 9.15 | | | 1.5 m standard | |||
| 2.0 M | 12.15 | | | 2.0 m standard | |||
| 2.5 M | 14.7 | | | 2.5 m standard | |||
| 3.0 M | 17.5 | | | 3.0 m standard |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 | | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | | 2.4 m galvanized steel Plank |
Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 9 | | U Head Jack | ||||
| default variation | 9 | | U Head Jack |
Castor Wheels
Castor wheels are used under the standards to give mobility to the scaffold. They have locking device to secure the scaffold in one place.
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|
| 200 X 50 | 6 | castor wheels |
