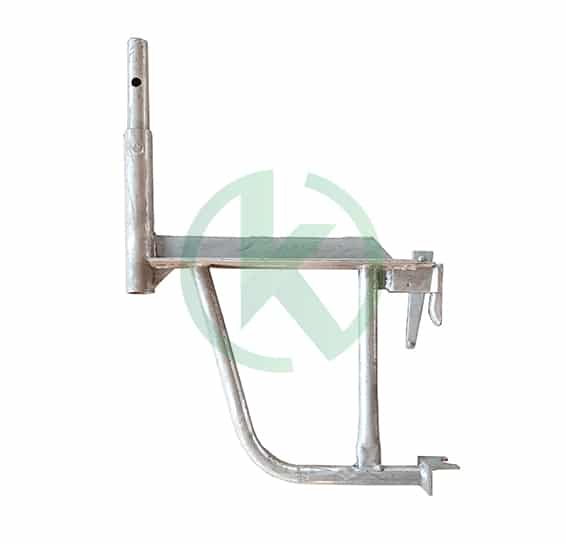

Kwikstage Hopup – Spigot
Hopups with spigots give more flexibility by fitting standards in the spigot and run handrails on the v press
| Size | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|
| 3 BOARD WIDE | ![]() | ![]() | 3 Board Hopup with Spigot | |||
| 2 BOARD WIDE | ![]() | ![]() | 2 Board Hopup with Spigot |
Related Products
Castor Wheels
Castor wheels are used under the standards to give mobility to the scaffold. They have locking device to secure the scaffold in one place.
| Size | Weight | Item Description | Quantity | ||
|---|---|---|---|---|---|
| 200 X 50 | 6 | castor wheels |
Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 9 | ![]() | U Head Jack | ||||
| default variation | 9 | ![]() | U Head Jack |
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 3.9 | ![]() | ![]() | 0.7 m ledger | |||
| 1.2 M | 5 | ![]() | ![]() | 1.2 m ledger | |||
| 1.8 M | 7.6 | ![]() | ![]() | 1.8 m ledger | |||
| 2.4 M | 9.3 | ![]() | ![]() | 2.4 m ledger |
Double C Clips
Used to Join Kwikstage scaffolding Standards Back to Back for more stability and steenght to the scaffold structure
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1.5 | ![]() | ![]() | Double C Coupler | |||
| default variation | 1.5 | ![]() | ![]() | Double C Coupler |
Kwikstage Galvanized Steel planks
Manufactured from Pre Galvanised steel sheet pressed to a hollow shape 60 mm High x 230mm wide. Steel Planks are strong, durable and light in weight. They fit neatly sit on the ÒTÓ section of 2 transoms. giving a non slip surface and a working deck.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 5.2 | ![]() | 0.7 m galvanized steel Plank | ||||
| 1.2 M | 8.1 | ![]() | 1.2 m galvanized steel Plank | ||||
| 1.8 M | 11.6 | ![]() | 1.8 m galvanized steel Plank | ||||
| 2.4 M | 15 | ![]() | 2.4 m galvanized steel Plank |
