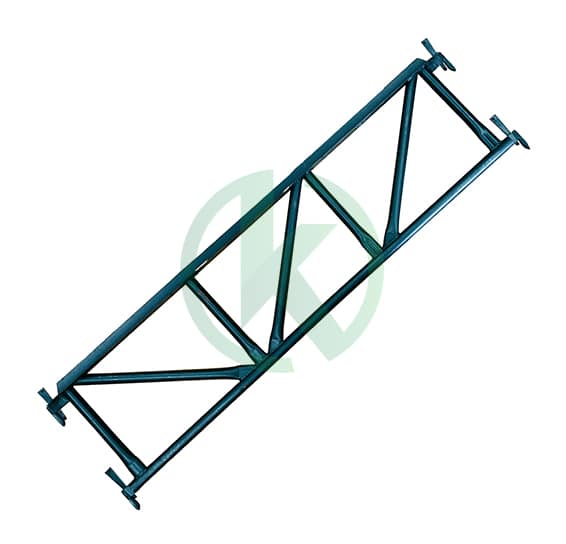

Kwikstage Ledger Transoms
Heavy duty back to back angle transoms for location of scaffold boards. These are used to where greater loads are required for pedestrain access.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 19 |  | | 1.2 m ledger transom | |||
| 1.8 M | 32 | | | 1.8 m ledger transom | |||
| 2.4 M | 42 | | | 2.4 m ledger transom |
