Kwikstage Scaffolding
Sole boards
Soleboards are hardwood timber planks used under Scaffold base jacks to provide greater load bearing capacity.ÊFor uneven ground levels you can use the adjustbale base jacks
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.5 M X 230 MM | 4.3 |  | 0.5 m sole board | ||||
| default variation | 4.3 | | 0.5 m sole board |
Solid base jack
Adjustable base jack enables accurate levelling of the scaffolding on uneven ground and infinite adjustment on sloping ground
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 7.5 | | Solid base jack | ||||
| default variation | 7.5 | | Solid base jack |
Swivel base jack
Swivel Jack provides stability for uneven surfaces. The jacks has 180 degree rotation for extra flexibility. Made from heavy duty steel and galvanized to last longer.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 7 | | swivel solid base jack | ||||
| default variation | 7 | | swivel solid base jack |
Scaffold U head Jack
U shaped head to support a standard or vertival pole over a scaffold standard. It is attached to a solid thread rod. which is 500mm long and 34 mm OD
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 34 OD X 650 mm x 8 MM | 9 | | U Head Jack | ||||
| default variation | 9 | | U Head Jack |
Kwikstage Standards
Standards are vertical structural member of the scaffold system which are made from 48.3 OD X 4mm Tubes. Standards have ÒVÓ pressings in clusters at 495 mm centres, which provide location points for Transoms, Ledgers, Braces,, Hopups etc and a spigot fixed at the top
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 3 | | | Standard Topper | |||
| 0.5 M | 3.6 | | | 0.5 m standard | |||
| 1.0 M | 6.5 | | | 1.0 m standard | |||
| 1.5 M | 9.15 | | | 1.5 m standard | |||
| 2.0 M | 12.15 | | | 2.0 m standard | |||
| 2.5 M | 14.7 | | | 2.5 m standard | |||
| 3.0 M | 17.5 | | | 3.0 m standard |
Kwikstage Ledgers
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3 OD X 3.2 mm & 4 mm tubes. Ledgers fit into the upper ÒVÓ Pressings on the standards.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 3.9 | | | 0.7 m ledger | |||
| 1.2 M | 5 | | | 1.2 m ledger | |||
| 1.8 M | 7.6 | | | 1.8 m ledger | |||
| 2.4 M | 9.3 | | | 2.4 m ledger |

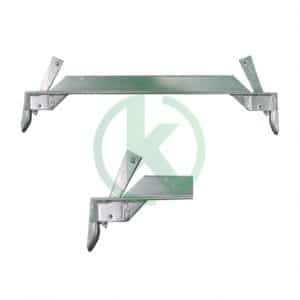

Kwikstage Transoms
Transoms are made by welding two 5.00 mm angles back to back. Transoms fit into the lower ÒVÓ pressings on the standards to carry steel boards which make a safe working platform.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.5 M | 5.8 | | | 0.5 m transom | |||
| 0.7 M | 6.1 | | | 0.7 m transom | |||
| 1.0 M | 7.2 | | | 1.0 m transom | |||
| 1.2 M | 9.8 | | | 1.2 m transom | |||
| 1.8 M | 15 | | | 1.8 m transom | |||
| 2.4 M | 21 | | | 2.4 m transom |

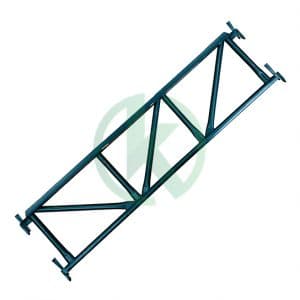

Kwikstage Ledger Transoms
Heavy duty back to back angle transoms for location of scaffold boards. These are used to where greater loads are required for pedestrain access.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 19 | | | 1.2 m ledger transom | |||
| 1.8 M | 32 | | | 1.8 m ledger transom | |||
| 2.4 M | 42 | | | 2.4 m ledger transom |
Kwikstage Hopup Bracket
Board Stage Brackets / hopups fit into the (V) pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1 BOARD WIDE | 2.4 | | | 1 Board stage bracket | |||
| 2 BOARD WIDE | 6.5 | | | 2 Board stage bracket | |||
| 3 BOARD WIDE | 11.4 | | | 3 Board stage bracket |

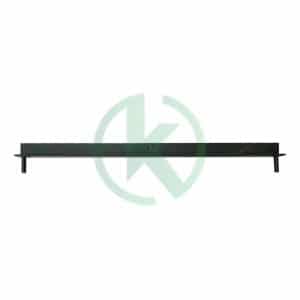

Kwikstage Tie Bars
Tie bars have pins at each ends which fit in holes of 2 and 3 board stage brackets (hopups) to prevent the brackets from spreading and the planks from becoming dislodged
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 2.5 | | | 0.7 m tie bar | |||
| 1.2 M | 3.6 | | | 1.2 m tie bar | |||
| 1.8 M | 5.2 | | | 1.8 m tie bar | |||
| 2.4 M | 7 | | | 2.4 m tie bar |
End Toe Board Bracket
End Toe Board brackets also called toe board Clips are fabricated brackets placed on the outside of a scaffold standard to allow toe boards to be installed .
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1 | | | end toe board bracket | |||
| default variation | 1 | | | end toe board bracket |
Toe board bracket
Toe baord brackets also known as toe board clips are Clamped to the standard with a captive wedge to hold the batten toe board vertically in place.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 0.85 | | | Toe board bracket | |||
| default variation | 0.85 | | | Toe board bracket |
Showing 1–12 of 25 results
