Kwikstage Scaffolding
Kwikstage Hopup Bracket
Board Stage Brackets / hopups fit into the (V) pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1 BOARD WIDE | 2.4 |  | | 1 Board stage bracket | |||
| 2 BOARD WIDE | 6.5 | | | 2 Board stage bracket | |||
| 3 BOARD WIDE | 11.4 | | | 3 Board stage bracket |
Kwikstage Hopup bracket – Straight arm
Board Stage Brackets / hopups fit into the ÒVÓ pressing of the standard which is nearest to the wall. The 2 & 3 BSB have holes into which tie bar pins are attached. They are used to provide cantilevered platform on the inside of the scaffold nearest the wall.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 6.25 | | | 2 board hopup straight arm | |||
| 3 BOARD WIDE | 11.25 | | | 3 board hopup straight arm |
Kwikstage Hopup bracket – Couplers
custom made with couplers for more flexibility
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 2 BOARD WIDE | 8.1 | | | 2 Board Hopup with Couplers | |||
| 3 BOARD WIDE | 12 | | | 3 Board Hopup with Couplers |
Kwikstage Hopup – Spigot
Hopups with spigots give more flexibility by fitting standards in the spigot and run handrails on the v press
| Size | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|
| 3 BOARD WIDE | | | 3 Board Hopup with Spigot | |||
| 2 BOARD WIDE | | | 2 Board Hopup with Spigot |
Kwikstage Tie Bars
Tie bars have pins at each ends which fit in holes of 2 and 3 board stage brackets (hopups) to prevent the brackets from spreading and the planks from becoming dislodged
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.7 M | 2.5 | | | 0.7 m tie bar | |||
| 1.2 M | 3.6 | | | 1.2 m tie bar | |||
| 1.8 M | 5.2 | | | 1.8 m tie bar | |||
| 2.4 M | 7 | | | 2.4 m tie bar |
End Toe Board Bracket
End Toe Board brackets also called toe board Clips are fabricated brackets placed on the outside of a scaffold standard to allow toe boards to be installed .
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1 | | | end toe board bracket | |||
| default variation | 1 | | | end toe board bracket |
Toe board bracket
Toe baord brackets also known as toe board clips are Clamped to the standard with a captive wedge to hold the batten toe board vertically in place.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 0.85 | | | Toe board bracket | |||
| default variation | 0.85 | | | Toe board bracket |
Double C Clips
Used to Join Kwikstage scaffolding Standards Back to Back for more stability and steenght to the scaffold structure
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 1.5 | | | Double C Coupler | |||
| default variation | 1.5 | | | Double C Coupler |

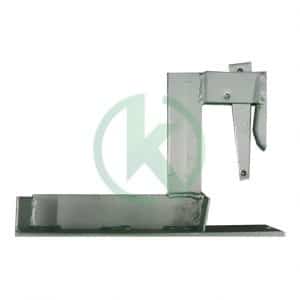

Step down bracket
The first step onto a stair access or ladder access is always difficult due to site constraints, ground levels and base outs. The use of the adjustable step down bracket gives the comfort of adjustment to balance the variables so the step becomesbalanced when getting on or getting off a stair access at ground level.
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 4.3 | | | one step down bracket | |||
| 0.3 M | 6.5 | | | Two step down bracket |
Gaurdrail Post
Used for edge protection Ð slab or balconyÕs. Bolted into concrete with 14mm Dyna Bolts. ÊCompatible with all sizes of ledgers which makes it very versatile
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 10 | | | guard rail post | |||
| default variation | 10 | | | guard rail post |
Handrail post
Used for edge protection Ð slab or balconyÕs. Bolted into concrete with 14mm Dyna Bolts. ÊCompatible with all sizes of ledgers which makes it very versatile
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1.2 M | 6.15 | | | Handrail post | |||
| default variation | 6.15 | | | Handrail post |
Steel Pallet – stillage
A steel structure built to hold goods in a stable fashion while being lifted by a forklift to stock, stack-up and transport
| Size | Weight | Painted | Galvanised | Item Description | Quantity | ||
|---|---|---|---|---|---|---|---|
| 0.3 M | 35 | | | steel pallet / stillage | |||
| default variation | 35 | | | steel pallet / stillage |
