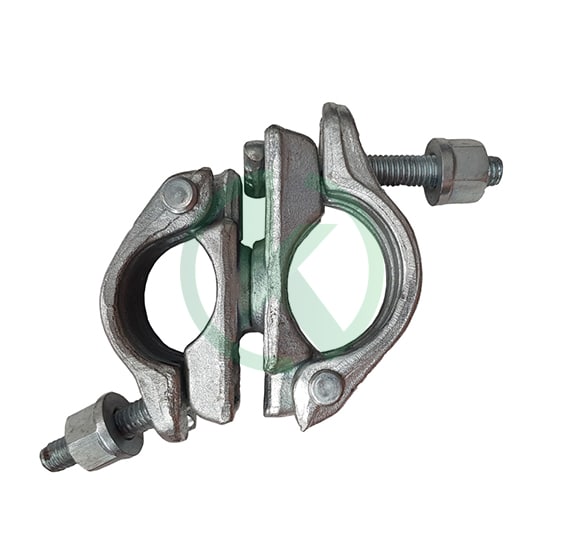

Swivel Coupler 60mm X 48 mm
A strong drop forged coupler like the double coupler but more flexible as it connects scaffold tubes at any angle required.
Size | Weight | Item Description | Quantity | ||
---|---|---|---|---|---|
60 mm X 48.3 mm | 1.1 | No Description |
